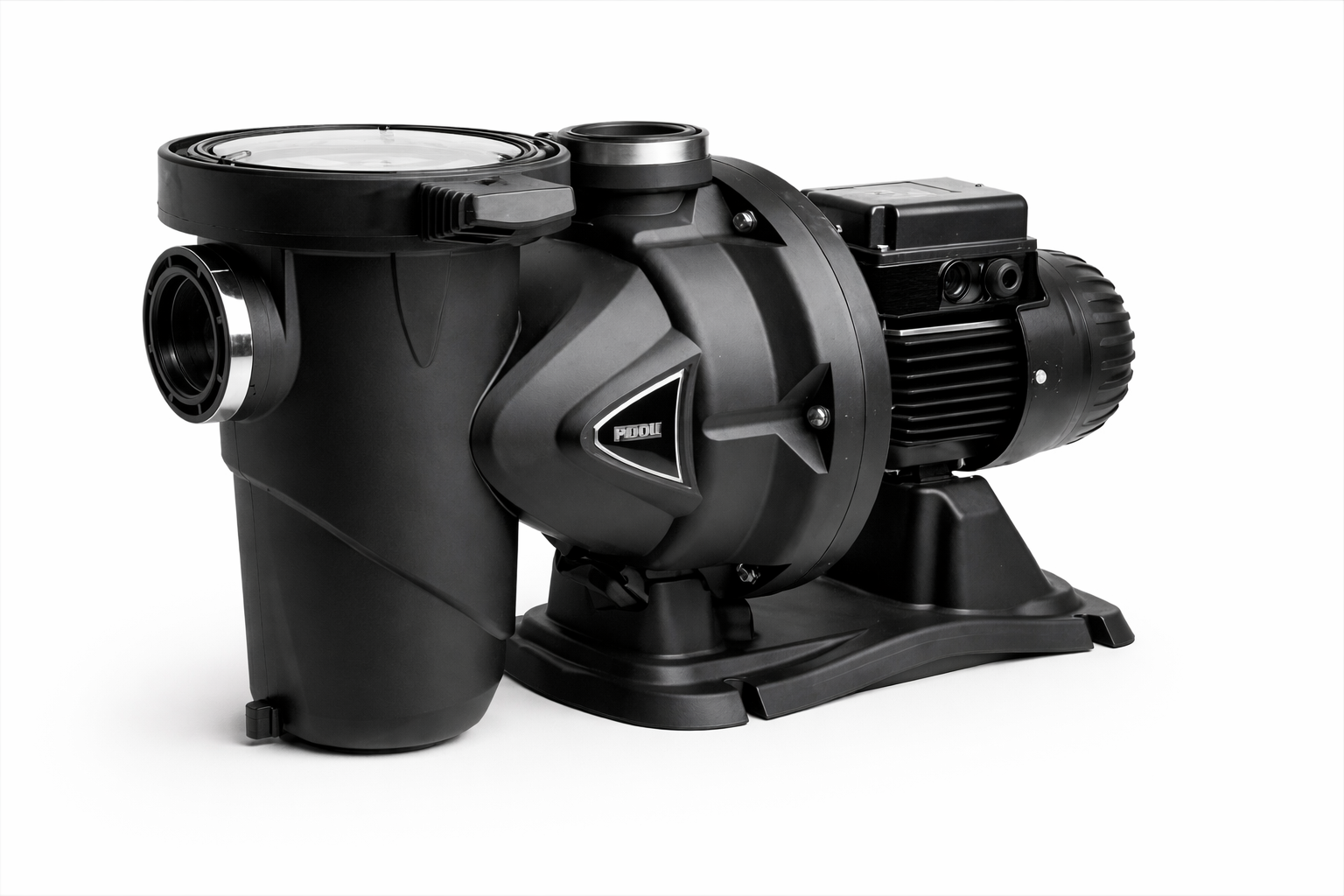

EUROSWIM PUMP

Product Description

SELF PRIMING PUMP “EUROSWIM”
• Fibreglass reinforced technopolymer body, impellar and diffuser
• Nylon strainer to prevent debris from entering the system
• Clear antioxidant polycarbonate strainer lid for visibility during operation
• Electrical motor shaft in stainless steel AISI 416
(Completely insulated from the water flow)
• Mechanical seal made in carbon, alumina, NBR and AISI 316
• Pump body O-rings in NBR, threaded fasteners and reinforcing rings in
AISI 304
• Butterfly drain plugs for easy removal and fitting. No tools necessary
• Asynchronous continuous duty 2-pole motor (S1) with generous range of
power ratings from 0.5 HP to 3 HP, single phase and 3-phase
• Motor casing in die-cast aluminium with electrophoresis surface
treatment to prevent oxidation, even in aggressive environmental
conditions
• Baseplate with rubber mounts to reduce vibration transmission
• Single phase version with integral thermal and over current protection
and permanent split capacitor (PSC), assembled inside the terminal box
for all versions.
• Power supply: Single phase 220-240V 50Hz, 3-phase 230/400V 50Hz,
60Hz on demand
• Operating range: Up to 42m3/h with pressure head up to 22m
• Maximum liquid temperature: 60° C
• Maximum ambient temperature: +50° C
• Motor: 2900 RPM
• Maximum operating pressure: 2.5 bar
• Protection rating: IPX5
• Insulation rating: Class F
